- Dry Flat Unit GHBW 1000/1200 is an accessory for screen frames. Capable of quick drying for screen frames after reclaiming and coating
- Unit is equipped with hot air recycling system with high effect and lower temperature range tolerance to maintain consistent drying
- Electronic temperature controller and drying timer with simple operation
- 4 feet wheels installed on the bottom for easy mobility

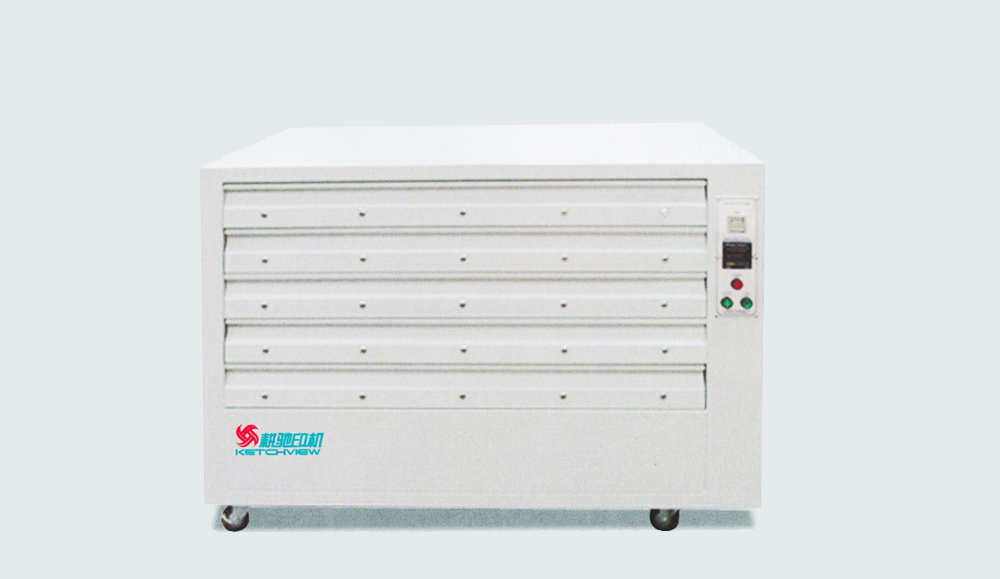

Series Dry Flat Machine - GHBW1000/1200 SERIES
Series Dry Flat Machine
TECHNICAL PARAMETERS
| Model | GHBW1000 | GHBW1200 |
| Max Screen Frame Size (mm) | 1000x850 | 1200x1000 |
| Max Screen Frame Numbers (P) | 5 | 5 |
| Temperature Tolerance (°C) | 0~5°C | 0~5°C |
| Power (Kw) | 380Vx3Px4.1Kw | 380Vx3Px4.1Kw |
| Weight (kg) | 350 | 500 |
| Figure Dimension (mm) LxWxH | 1350x1300x1600 | 1650x1450x1700 |
